  • Dactyl WAFER Type

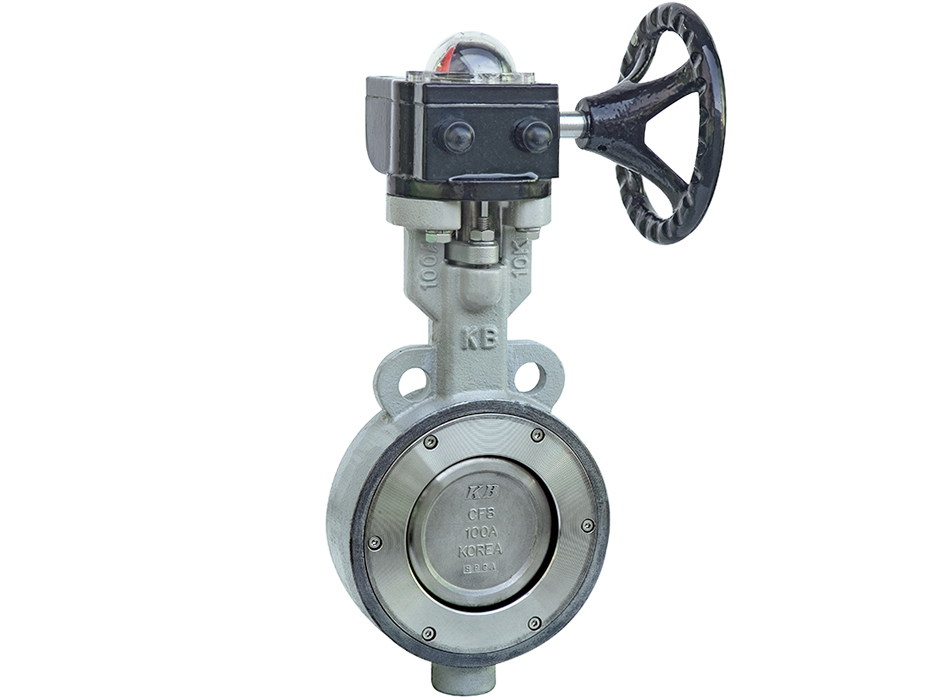

  • Product photo

  • Product information

    • ㆍBODY TYPE : WAFER
    • ㆍSize : 40A ~400A
    • ㆍApplication temperature : -30 ~ 250℃
    • ㆍOperation method : GEAR, LEVER, ACTUATOR
    • ㆍRATING(pressure) : KS/JIS 10, 16, 20K

    Material

    • ㆍBODY : GCD450
    • ㆍDISC : SSC13, SSC14
    • ㆍSEAT : RTFE
    • ㆍSTEM : STS 304, 316, 410
  •

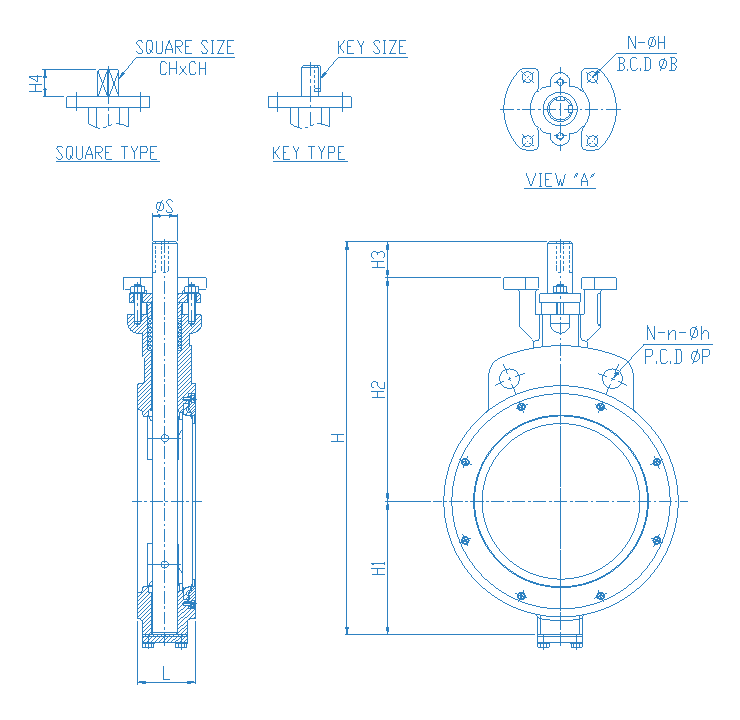

  • Product blueprint
  • spec01
  • Product specification
  • DIMENSIONS
    SIZE L H H1 H2 H3 STEM TOP FLANGE
    inch mm ∅S KEY SIZE SQUARE Type ∅B N-∅H
    CHxCH H4
    1.5" 40 33 241 58 142 41 14 5x5x35 11x11 30 F07 70 4-10
    2" 50 43 257 70 146 41 14 5x5x35 11x11 30 F07 70 4-10
    2.5" 65 46 273 76 156 41 14 5x5x35 11x11 30 F07 70 4-10
    3" 80 46 304 85 178 41 14 5x5x35 11x11 30 F07 70 4-10
    4" 100 52 321 95 185 41 14 5x5x35 11x11 30 F07 70 4-10
    5" 125 56 371 128 202 41 18 6x6x35 14x14 30 F07 70 4-10
    6" 150 56 429 155 233 41 20 6x6x35 14x14 30 F07 70 4-10
    8" 200 60 472 173 258 41 28 8x7x35 22x22 40 F10 102 4-12
    10" 250 68 603 242 320 41 32 10x8x35 22x22 40 F10 102 4-12
    12" 300 78 649 264 344 41 35 10x8x35 27x27 40 F12 125 4-14
    14" 350 78 726 300 385 41 38 10x8x35 27x27 50 F14 140 4-18
    16" 400 102 802 329 418 55 40 12x8x50 27x27 50 F14 140 4-18
    ※ Specifications not listed above are available upon request.
