  • Dractile Grooved Valve
  • Product photo

  • Product information

    • ㆍBODY TYPE : GROOVE
    • ㆍSize : 50A ~ 200A
    • ㆍApplication temperature : -30 ~ 90℃
    • ㆍOperation method : GEAR, LEVER, ACTUATOR
    • ㆍRATING(pressure) : KS/JIS 10, 16, 20K, ANSI 150, 300, PN 10~25

    Material

    • ㆍBODY : GCD450
    • ㆍDISC : GCD450
    • ㆍSEAT : EPDM
    • ㆍSTEM : STS 304, 410
  •

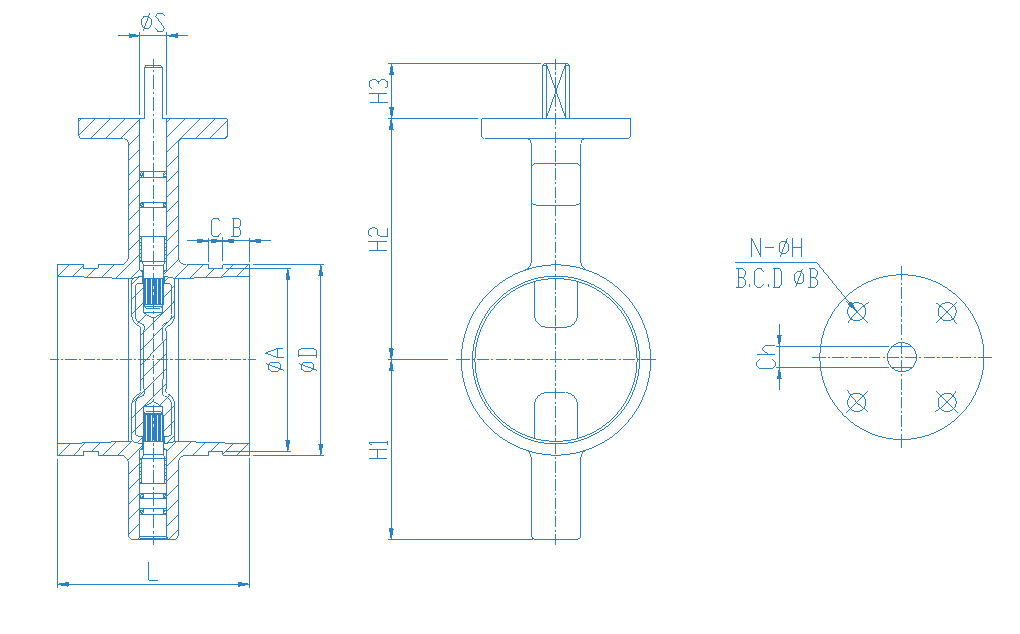

  • Product blueprint
  • spec01
  • Product specification
  • DIMENSIONS
    SIZE L H1 H2 H3 조인트 치수 STEM TOP FLANGE
    inch mm ∅A B C ∅D ∅S Ch Type ∅B N-∅H
    2" 50 81 75 95 33 57.2 8.7 16 60.5 14 10 F05 70 4-10
    2.5" 65 97 85 105 33 72.3 8.7 16 76.3 16 12 F07 70 4-10
    3" 80 97 92 112 33 85.0 8.7 16 89.1 16 12 F07 70 4-10
    4" 100 116 108 145 33 110.0 8.7 16 114.3 16 12 F07 70 4-10
    5" 125 148 128 162 33 135.5 8.7 16 139.8 19 15 F07 70 4-10
    6" 150 148 145 179 33 160.8 8.7 16 165.2 19 15 F07 70 4-10
    8" 200 133 170 204 33 211.6 11.9 19 216.3 22 16 F07 70 4-10
    ※ Specifications not listed above are available upon request.
